Product Description

... bringing easy model railway control into the 21st century!

The ACE-2 is a fully-featured, but low-cost, DCC controller which has been designed to provide a very “user-friendly” interface.

It offers many features found on “high-end” units but its novel touchscreen interface design has led to lower manufacturing costs and, therefore, a lower price and higher specification controller to the end user!

How it works………

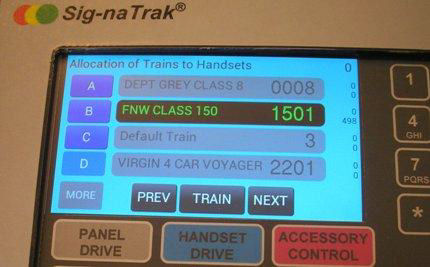

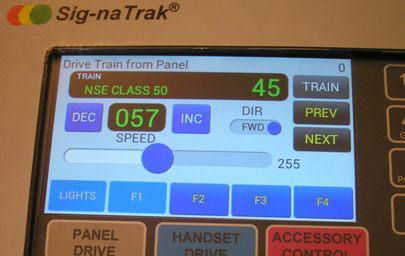

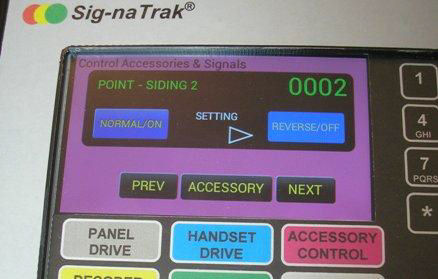

The ACE-2 uses a touch screen arrangement where the main operating modes are selected using clearly-labelled buttons below the display. Trains, points and signals are then controlled from their respective screen using the displayed on screen buttons, and sliders.

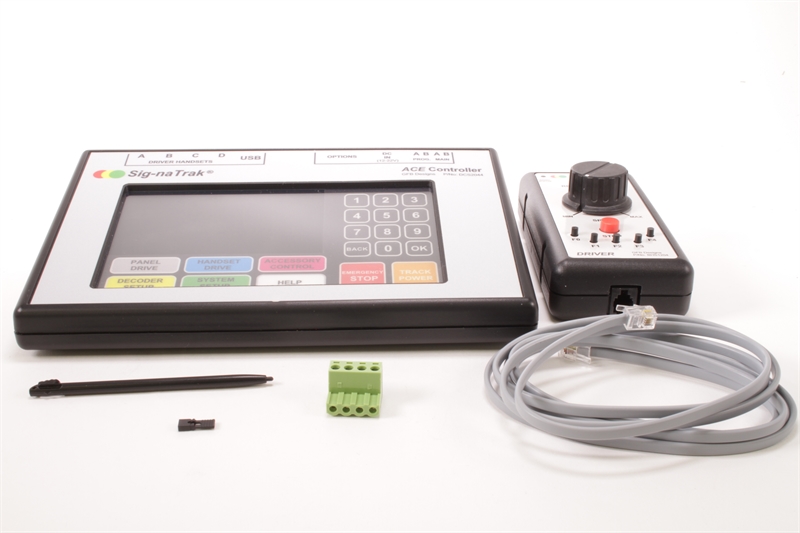

For modellers who prefer a more traditional approach to train control, we also offer the DRIVER handset (available separately). Up to four of these low-cost handsets may be plugged into the ACE, providing a rotary knob for speed control and a slide switch for forward/reverse. Five buttons are also included for train functions such as lights, horn etc.

Basic Specification

• Up to 9999 train/locomotive numbers (addresses)
• Up to 2044 point/signal (accessory) addresses
• Track current – max. 5A using supplied power cable.
• Choice of “short” or “long” address for EACH train
• 16 different "function sets" for naming of function buttons and setting independent latching or non-latching functions
• Up to 127 train and 85 accessory details stored in lists – details retained when the ACE is powered down
• Each train or accessory in the list can be named (with up to 16 different "function sets")
• Train and accessory decoders can be set-up (CV's programmed) either via a programming track or whilst running on your layout
• Fully NMRA-compliant
• UBI2044 USB Interface BUILT IN for software upgrades.
• Compact unit – 220 x 145 x 40 mm
